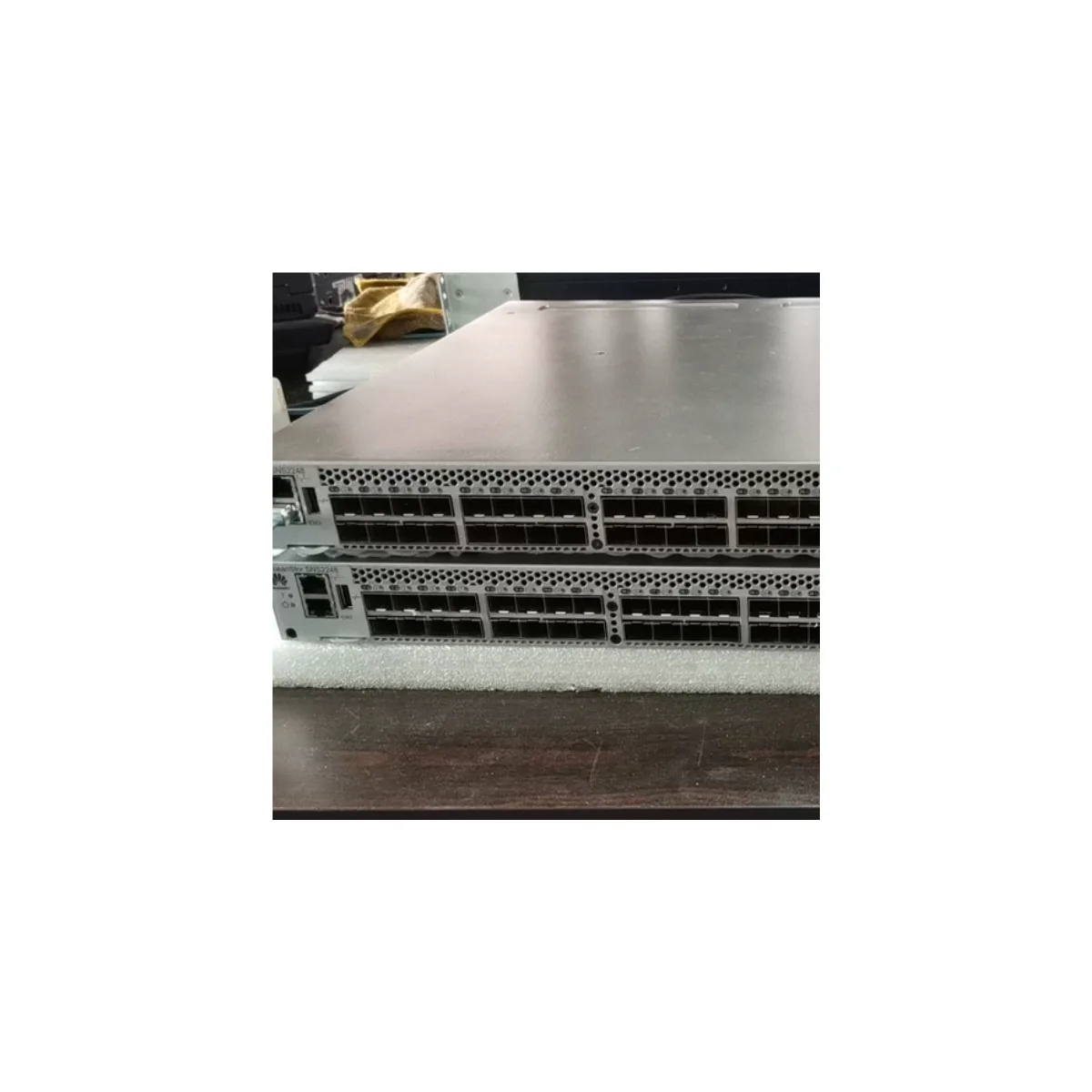

Huawei OceanStor SNS2624

Part number: SNS2624

On Request Unknown

Key specifications

Model	SNS2624
Number of Ports	Switch mode (default): 8-port, 16-port, and 24-port configurations (8-port increment through Ports on Demand [PoD] license) Access Gateway default port mapping: 16 F Ports, 8 N Ports
Port Types	F Port, E Port, M Port, and D Port (ClearLink Diagnostic Port) on 24 SFP+ ports Access Gateway mode: F Port and NPIV-enabled N Port
Performance	Auto-sensing of 4 Gbit/s, 8 Gbit/s, 16 Gbit/s, and 32 Gbit/s port speeds
Aggregate Bandwidth	768 Gbit/s end-to-end full duplex
Maximum Fabric Latency	Latency for locally switched ports is ≤ 900 ns (including FEC)
Maximum Frame Size	2,112-byte payload
Frame Buffers	2,000 dynamically allocated
Classes of Service	Class 2, Class 3, and Class F (inter-switch frames)
USB	One USB port for system log file downloads or firmware upgrades
Scalability	Full-fabric architecture with a maximum of 239 switches

Ordering information

Condition	Unknown
Availability	On Request
Warranty	Tested before shipping. 90-day warranty.
Lead time	TBD

Values marked TBD are pending confirmation and are not guessed.
